How Does a Carousel Work? The Complete Guide to Carousel Mechanics

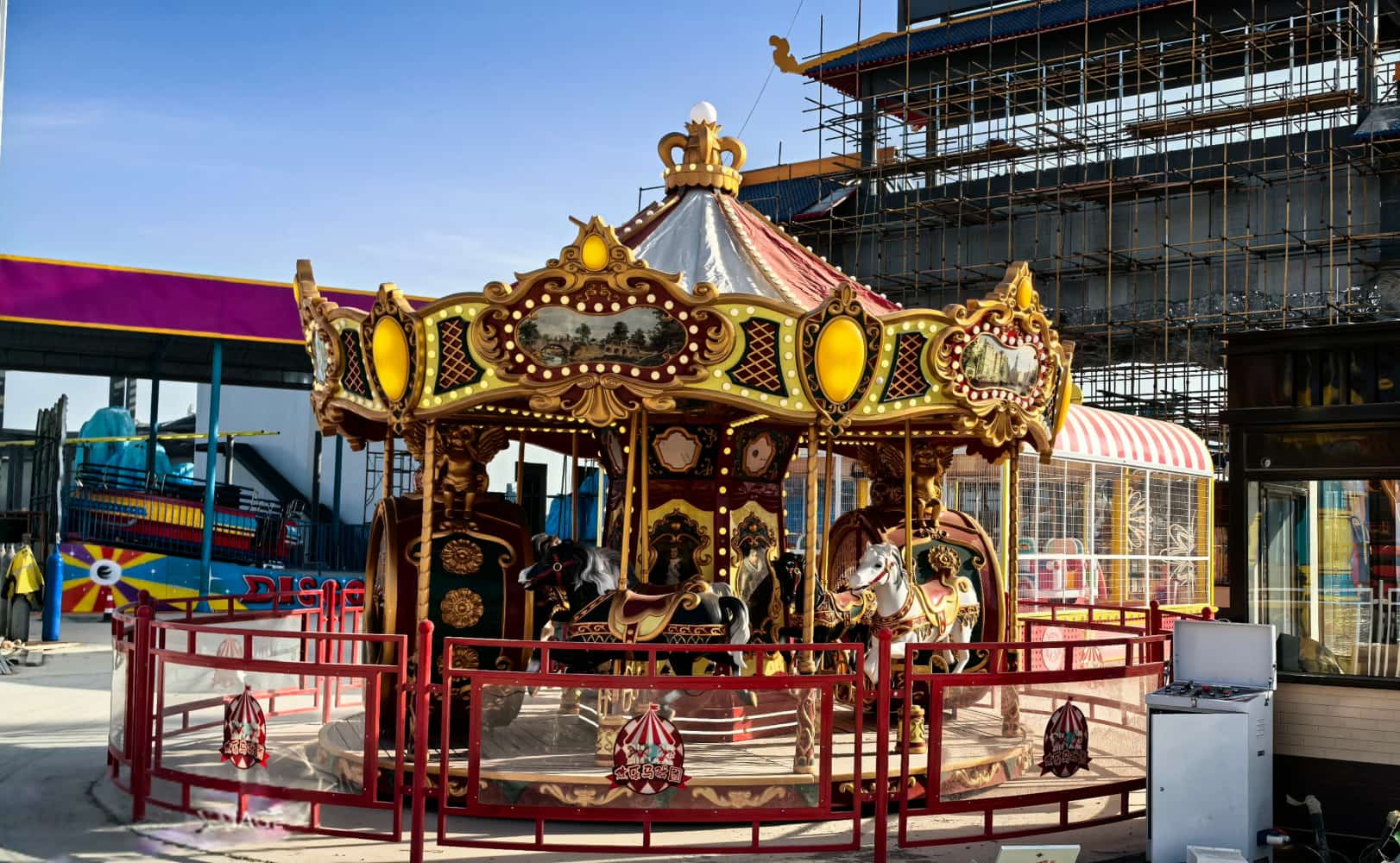

Generally speaking, a carousel is a traditional family entertainment ride featuring a large rotating circular platform and passenger seats. Usually styled like classic wooden or fiberglass horses, these seats move up and down in time with the adorable melody. We also refer to it as a merry-go-round.
However, purchasing large amusement equipment differs from selecting a tiny toy. You cannot determine whether a machine is of high quality if you do not understand how the interior components function. During hectic weekends, a minor error in the motor system or transmission gears could result in an unexpected breakdown. You can easily safeguard visitor safety, save many unforeseen daily repair expenses, and maximize long-term operational earnings for your park business investment when you have a thorough understanding of the fundamental carousel mechanics.
The internal components of a carousel will be explained in this guide. We will demonstrate how these high-return rides and attractions truly operate by combining our understanding of fundamental physics with the 26 years of manufacturing experience of the SUNHONG firm.
- 1. What Are a Carousel Ride's Principal Elements?
- 1. The System of Ground Support
- 2. The Central Column That Is Static
- 2. Detailed Mechanical Guide: How Do Carousels Operate?
- Step 1: Control of Speed and Power Input
- Step 2: Controlling the Spinning Horizontal Rotation
- Step 3: Getting the Horses to Rise and Fall
- 3. Which Mechanical Layout Is Better, Top-Drive or Bottom-Drive?
- Type 1: High-end, long-lasting overhead top-drive system
- 4. How Carousel Lifespan and ROI Are Affected by Engineering Quality
- 5. What Makes SUNHONG Your Carousel Manufacturer of Choice?
- FAQ: Typical Technical Inquiries from Actual Park Managers
1. What Are a Carousel Ride's Principal Elements?

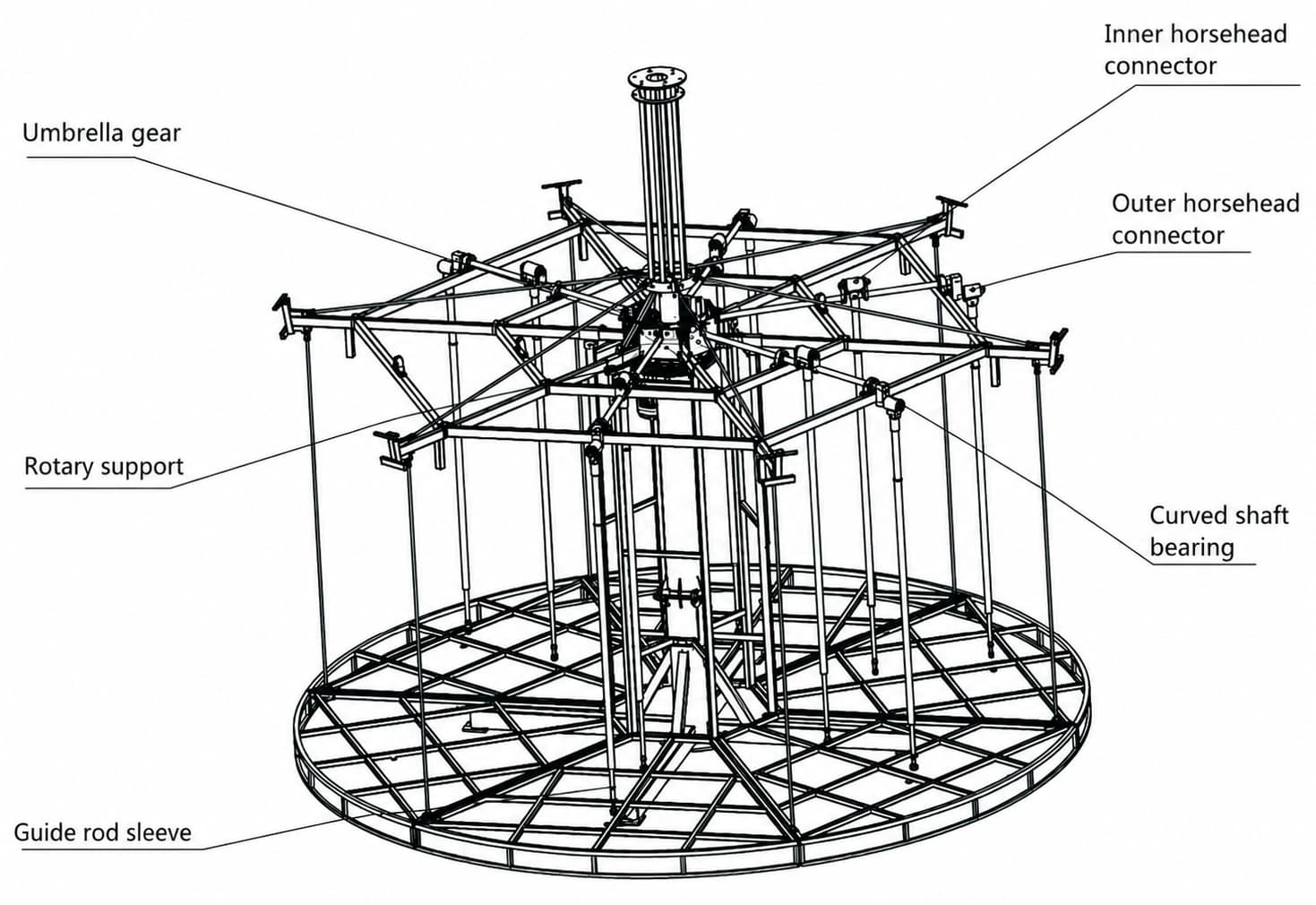

We must first examine the steel construction skeleton of a carousel ride in order to understand how it can operate for an extended period of time under demanding everyday activity. Merry-go-rounds are more than just spinning plates. These are large industrial engineering components that are highly integrated. The three most crucial components of a carousel's anatomy are as follows, per professional manufacturing standards and international safety regulations:
1. The System of Ground Support
A highly sturdy and robust foundation is necessary for all big rotating entertainment equipment. Traditional carousels used to require a fairly deep concrete foundation that was excavated into the park. Park operators will lose a lot of money and time on this civil work. It also prevents the ride from moving indefinitely.
However, contemporary technology has altered this situation. The primary chassis of the SUNHONG facility is constructed by our skilled engineers using national standard 253B structural steel.
Our sophisticated CNC machines perfectly cut every piece of steel. After that, it will be welded together by our engineers, who have over 15 years of welding experience. Lastly, we apply automotive-grade paint to the surface to effectively prevent rust.
The fact that we created a special Triangle Frame Support System is crucial. Triangles are the most stable shapes in the world, as everyone knows. SUNHONG carousels may operate smoothly and steadily on any level surface thanks to this unique structure; no concrete foundation construction is required. For mobile carnivals, this makes the attraction easy to move and saves park owners thousands of dollars.
Why Are Park Owners Affected?
Conventional commercial carousels require costly concrete excavation, which might take several days and incur significant labor expenses. A concrete-fixed ride cannot be moved if your park lease expires or if you wish to alter the park's layout to increase foot traffic. You may quickly disassemble and relocate the entire machine without causing any damage, thanks to our portable frame design. After two or three years of heavy passenger loads, cheap, badly welded foundation frames will break or crack. The complete carousel remains perfectly balanced for more than 15 years without shifting, thanks to a high-precision CNC structural steel chassis.
2. The Central Column That Is Static
This large vertical steel column is located precisely in the middle of the carousel ride. When the machine is operating, it never rotates or moves. It serves as the framework for the complete ride system.
First, it holds up the upper canopy ornamentation and the hefty weight of the roof frame.
Second, when the ride is completely packed with parents and kids, it holds all the forces by supporting the entire rotation.
3. The Platform That Rotates
This is the large circular floor where the horses are placed and where kids stroll. They are either driven from the bottom or suspended from the top. It ought to be sturdy enough to withstand years of hard footfall without bending or warping.
Key Carousel Components at a Glance
|
Component |
Function |
|
Base Frame |
Supports the ride structure |
|
Central Column |
Main load-bearing structure |
|
Rotating Platform |
Carries passengers |
|
Drive System |
Creates rotation |
|
Horse Mechanism |
Creates vertical motion |
|
Control System |
Manages operation |
2. Detailed Mechanical Guide: How Do Carousels Operate?
A top-notch carousel ride operates on a very lovely principle. It simultaneously transforms basic electric power into two kinds of mechanical movements: vertical up-and-down motion and horizontal circular spinning. Let's examine this mechanical work's step-by-step procedure:
Step 1: Control of Speed and Power Input
When park employees hit the start button on the electrical control box, the game begins. The main motor receives the electricity. However, the speed at which ordinary motors spin makes them too risky for family amusement rides.
Thus, SUNHONG makes use of a sophisticated Cycloidal Pinwheel Reducer Motor. The motor's high speed can be converted into a very smooth, low speed with high torque with this reducer. The operator can determine the working time before the ride begins. Press the start button after first pressing the preparatory bell. Passengers won't experience any abrupt shock because the machine will accelerate extremely slowly.
Step 2: Controlling the Spinning Horizontal Rotation
The motor output shaft will drive the Spur Gear Transmission Mechanism when the speed is properly regulated. The main column's extremely precise slewing bearing is connected to this large driving gear. The gears will force the top roof structure and bottom platform to smoothly spin around the middle pillar when the motor rotates.
Step 3: Getting the Horses to Rise and Fall
Many park purchasers ask us: How can the horses move up and down simultaneously when the platform is spinning? The upper roof structure conceals this secret.
Numerous radial arms are whirling in unison beneath the roof. Here, we install a smart connecting rod mechanism and crankshaft:
- a. A large central Bevel Gear Transmission System will be touched when the top frame rotates around the stationary center column.
- b. Individual tiny pinion gears that attach to horizontal crankshafts will be driven by this large bevel gear.
- c. The vertical suspension rods are constantly pushed and pulled up and down by the crooked construction of these crankshafts.
- d. This gives the fiberglass horses the appearance of galloping on a battlefield by converting the horizontal spinning force into vertical mechanical power.
3. Which Mechanical Layout Is Better, Top-Drive or Bottom-Drive?
Two distinct mechanical designs can be found while searching for theme park equipment or looking at various rides for sale online. You have to make careful decisions because they have a significant impact on your daily maintenance tasks and overall expenses.
Type 1: High-end, long-lasting overhead top-drive system
This design places the engine, crankshafts, bevel gears, spur gears, and cycloidal reducer inside the top roof canopy, high above the ground.
Advantages: A carousel is extremely secure because all of its crucial mechanical components are far away from kids. Additionally, it is shielded from dust, rain, and tourists' spilled drinks or sweet juice. The ride has a substantially longer lifespan and is extremely quiet and clean.
Cons: Because the center column needs to be extremely sturdy to support all of the top mechanical weight, the initial manufacturing cost is somewhat higher.
Type 2: Lower Cost Ground Bottom-Drive System
The transmission belts and motor are mounted directly beneath the floor platform in this arrangement.
Advantages: Include a lower center of gravity and easy ground-based motor inspection for maintenance personnel.
Cons: Rain, water, dust, and rubbish on the ground can easily contaminate the gears and motor. The gears will soon break down if you don't clean and replace the parts frequently because the grease will get dirty quickly.
|
Feature |
Top Drive |
Bottom Drive |
|
Weather Protection |
High |
Medium |
|
Maintenance Frequency |
Lower |
Higher |
|
Noise Level |
Lower |
Higher |
|
Initial Cost |
Higher |
Lower |
|
Lifespan |
Longer |
Shorter |
4. How Carousel Lifespan and ROI Are Affected by Engineering Quality
Purchasing large thrill amusement park equipment is a significant business that involves risk management and cash flow. If you get a low-quality, inexpensive vehicle, it can unexpectedly break down over a major holiday weekend. Tourists will become irate, and you will lose thousands of dollars in ticket sales as a result. Selecting premium materials throughout production is the best approach to generate large earnings. Let's examine the distinction between the SUNHONG engineering standard and the low-cost standard market quality:
|
Main Components |
Basic Commercial Standard in the Market |
Premium Engineering Standard |
What benefits can you get? |
|
Base Bottom Frame |
Mixed scrap steel; manual hand cutting |
National Standard 253B Steel + CNC Machine Cut |
Over 15 years of structural life; no bending or frame cracks. |
|
Gears and Motor |
Low-grade cast iron; big noise and friction |
Precision-milled Bevel & Spur Gears with Cycloidal Reducer |
Very quiet operation (<65dB); smooth ride experience. |
|
Horse & Decorative Panels |
Thin plastic or single-layer gelcoat |
Multi-layer, Hand-polished Fiber Reinforced Plastic (FRP) |
Very strong, anti-corrosion, rustproof, and environmentally friendly. |
|
Surface Painting |
Simple industrial spray paint; easy to fade |
Multi-layer Automotive-grade Baked Paint + Anti-UV Coat |
Keep colors bright and shiny for many years under the sun and rain. |
|
Electric Control Box |
Cheap manual switches; easy to short-circuit |
Smart Control Cabinet with Isolated Conductive Slip Ring |
Automatic running time, safety bell, and no wire twisting problem. |
5. What Makes SUNHONG Your Carousel Manufacturer of Choice?
Since its founding in 2000, SUNHONG has grown to become one of China's largest and most prominent businesses. We employ over 200 skilled people in our state-of-the-art, 30,000-square-meter factory. Additionally, we have more than 80 professionals with expertise in mechanical engineering, design, and research and development.
SUNHONG, a leading manufacturer and supplier of amusement rides, has assisted over 1,000 amusement parks globally in lowering risk and increasing earnings. We offer you a true one-stop shop:
- a. Free Park Layout and Design: Our design experts will arrange your location to maximize foot traffic and draw in more visitors.
- b. Customized IP Theming: Depending on your park's narrative, we can create unique horse designs, colors, logos, and music.
- c. 150+ Amusement Park Rides for Sale: Our extensive inventory includes anything from enormous thrill roller coasters to 12-seat tiny carousels.
- d. Free Worldwide Installation Guide: We provide you with extremely lucid instruction manuals and videos. We can also dispatch senior engineers to assist with installation in your nation.
FAQ: Typical Technical Inquiries from Actual Park Managers
Can a carousel ride operate outside in extremely poor weather?
Yes, but it needs to be constructed with high-quality outside materials. Superior Fiber Reinforced Plastic (FRP) and anti-UV vehicle paint are used in SUNHONG carousels. Additionally, our top roof cover is totally waterproof, shielding a carousel's internal structure from intense sunlight, rain, and snow.
How frequently should the carousel parts be greased?
We recommend that your employee inspect the crankshaft connecting rods, bevel gears, and central slewing bearing once a week. To keep the ride smooth and silent, you should apply industrial lithium grease every 30 operating days (or every 15 days during a busy summer holiday season).
What Distinguishes a Merry-Go-Round From a Carousel?
Many people believe that carousels and merry-go-rounds are entirely distinct rides. They typically refer to the same spinning horse attraction in the context of contemporary amusement parks. However, "merry-go-round" occasionally refers to smaller, more basic playground spinning platforms or simpler carnival designs, whereas "carousel" is more commonly used in European historical culture for high-end, highly decorated artistic installations with jumping horses.
