1. About SUNHONG Carousel Rides

SUNHONG carousel rides are designed with reliable mechanical structures, durable materials, and customizable appearance options.

The carousel can be customized according to:

• Installation space
• Capacity requirements
• Theme park concept
• Decorative style
• Customer project requirements

Main applications include:

• Amusement parks
• Theme parks
• Shopping malls
• Family entertainment centers
• Resorts
• Tourist attractions

Explore SUNHONG Carousels for Sale

2. Main Structure and Working Principle of Carousel

A carousel consists of several major systems:

• Roof and decorative structure
• Main support column
• Rotating platform
• Crank and connecting rod system
• Gear transmission system
• Motor and reducer system
• Bevel gear transmission system
• Horse lifting mechanism
• Electrical control system
• Lighting and sound system

Working Principle

After the power supply is connected, the operator sets the running time through the control system.

After passengers are seated safely:

1. The warning bell is activated.
2. The start button is pressed.
3. The motor drives the transmission system.
4. The platform rotates smoothly.
5. The horses move up and down through the crank mechanism.
6. The ride stops automatically after the preset operating time.

3. Carousel Installation Guide

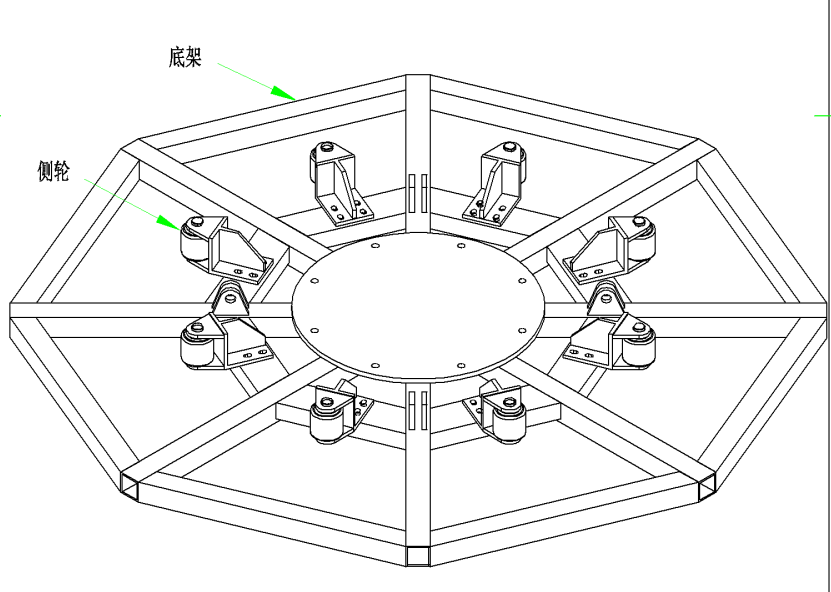

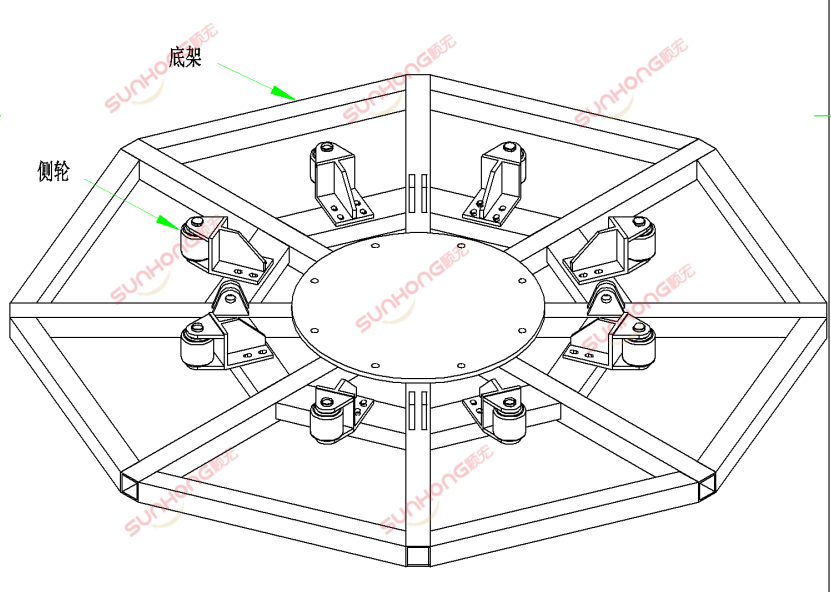

Step 1: Install the Base Frame

Installation requirements:

• Place the base frame at the designed center position.
• Adjust horizontal alignment.
• Fix the frame using expansion bolts.
• Confirm the cable outlet direction matches the control cabinet position.

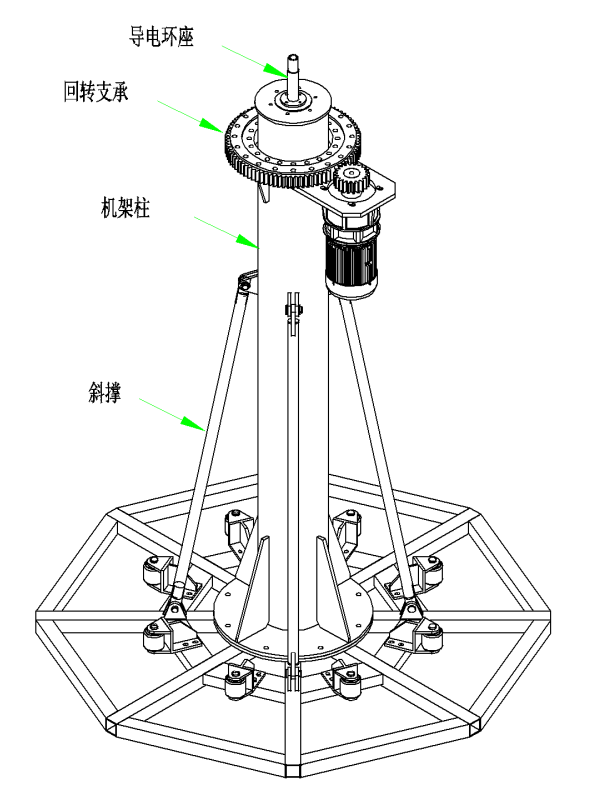

Step 2: Install Main Column and Support Structure

Installation steps:

• Install the central support column onto the base frame.
• Align support brackets correctly.
• Fix bolts securely.
• Install the slewing bearing.
• Install the drive motor.
• Adjust gear engagement.
• Install electrical components and wiring.

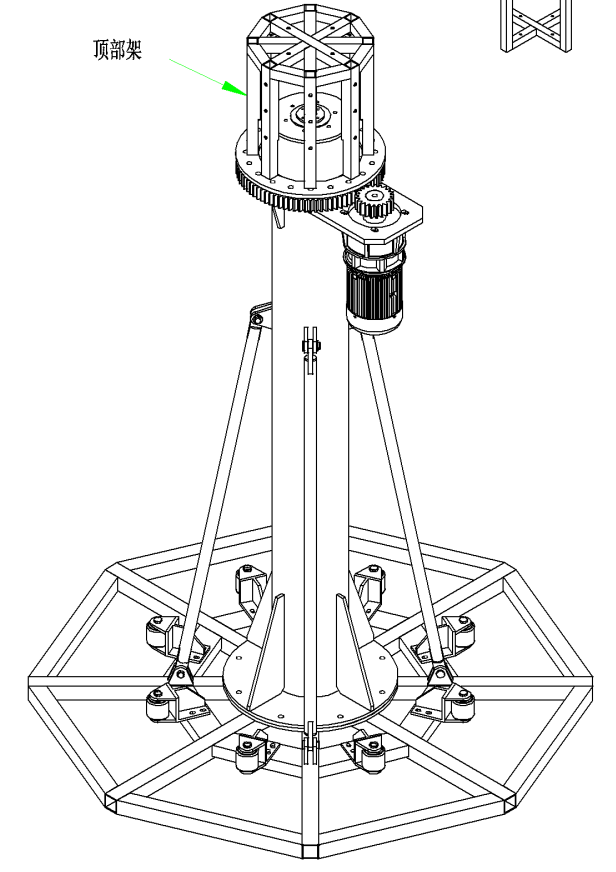

Step 3: Install Upper Frame Structure

Steps:

• Fix the top frame onto the rotating support structure.
• Tighten all connection bolts.
• Install canopy support components if required.

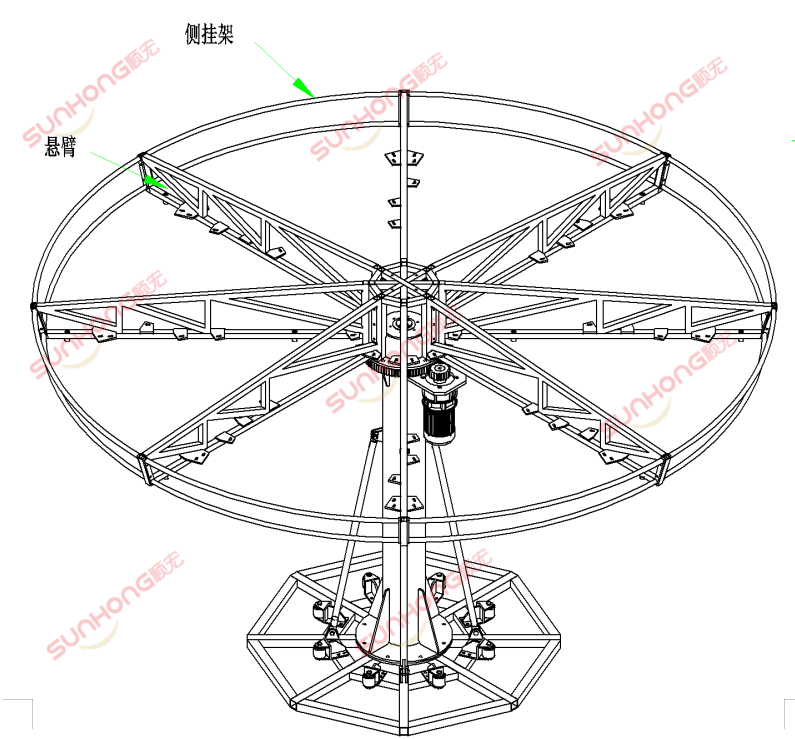

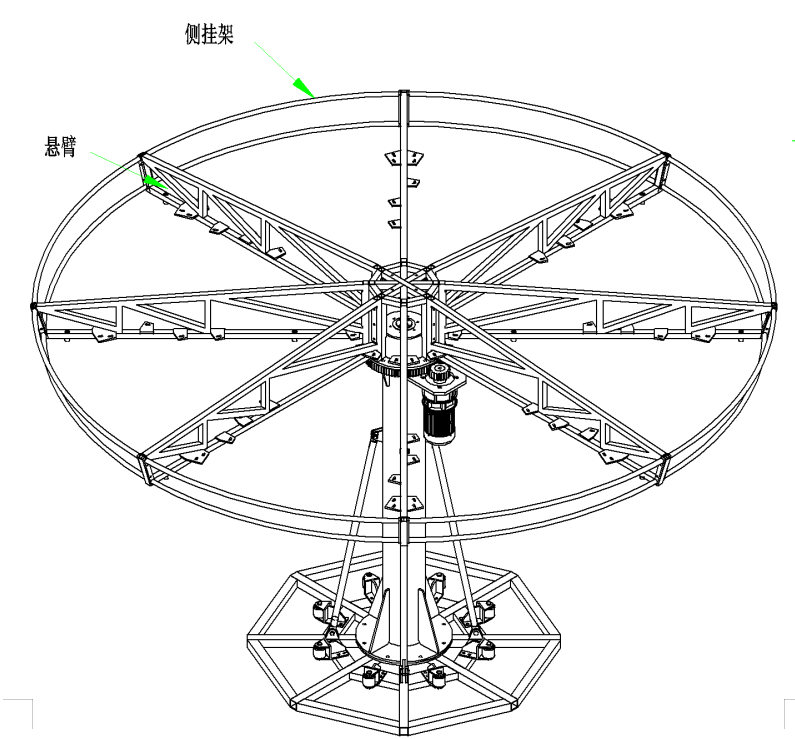

Step 4: Install Cantilever Arms and Side Structures

Steps:

• Match component numbers before assembly.
• Connect the cantilever arms.
• Install side hanging structures.
• Adjust spacing.
• Tighten all bolts.

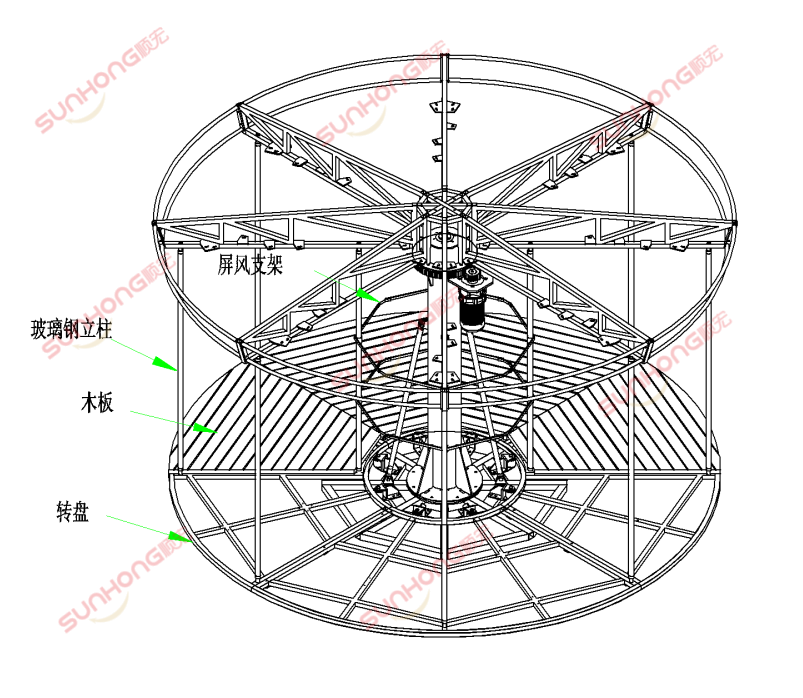

Step 5: Install Platform and Decorative Components

Install:

• Rotating platform
• Fiberglass columns
• Floor panels
• Decorative panels
• Lighting structures

Ensure:

• Platform joints are aligned.
• Surface is level.
• All bolts are securely tightened.

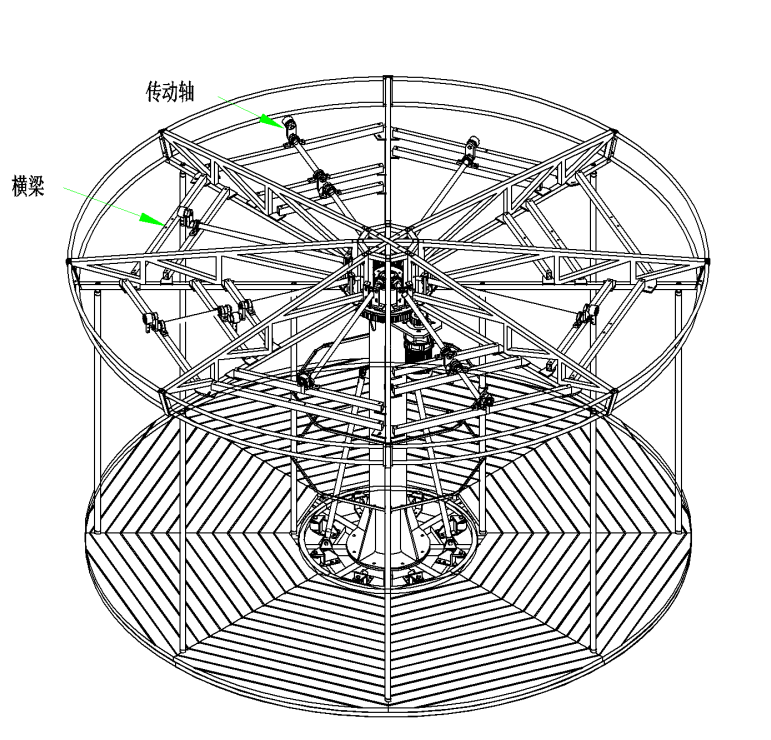

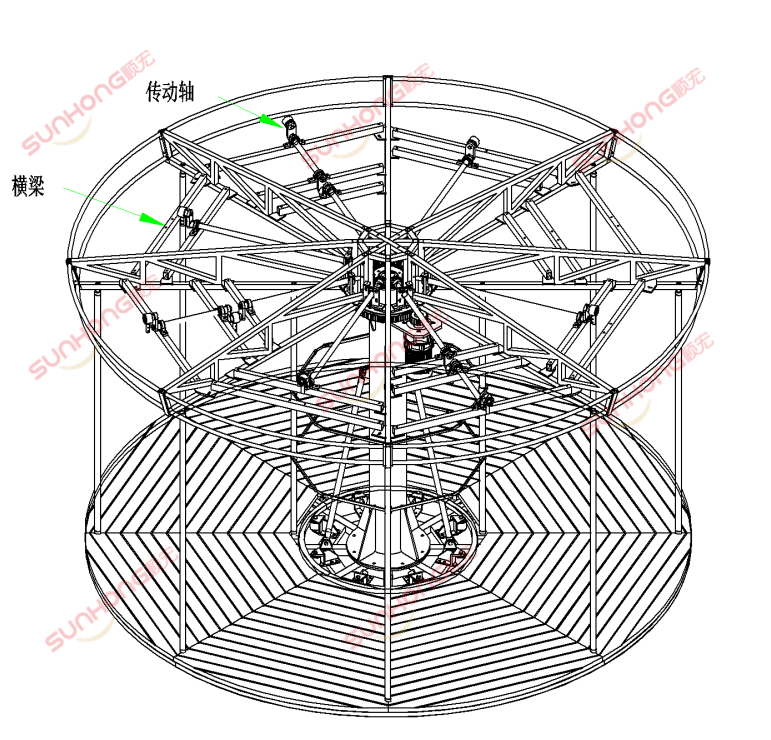

Step 6: Install Transmission System

Includes:

• Cross beams
• Transmission shafts
• Gear systems

Important:

The transmission shaft must remain straight, and gears must engage smoothly without abnormal noise.

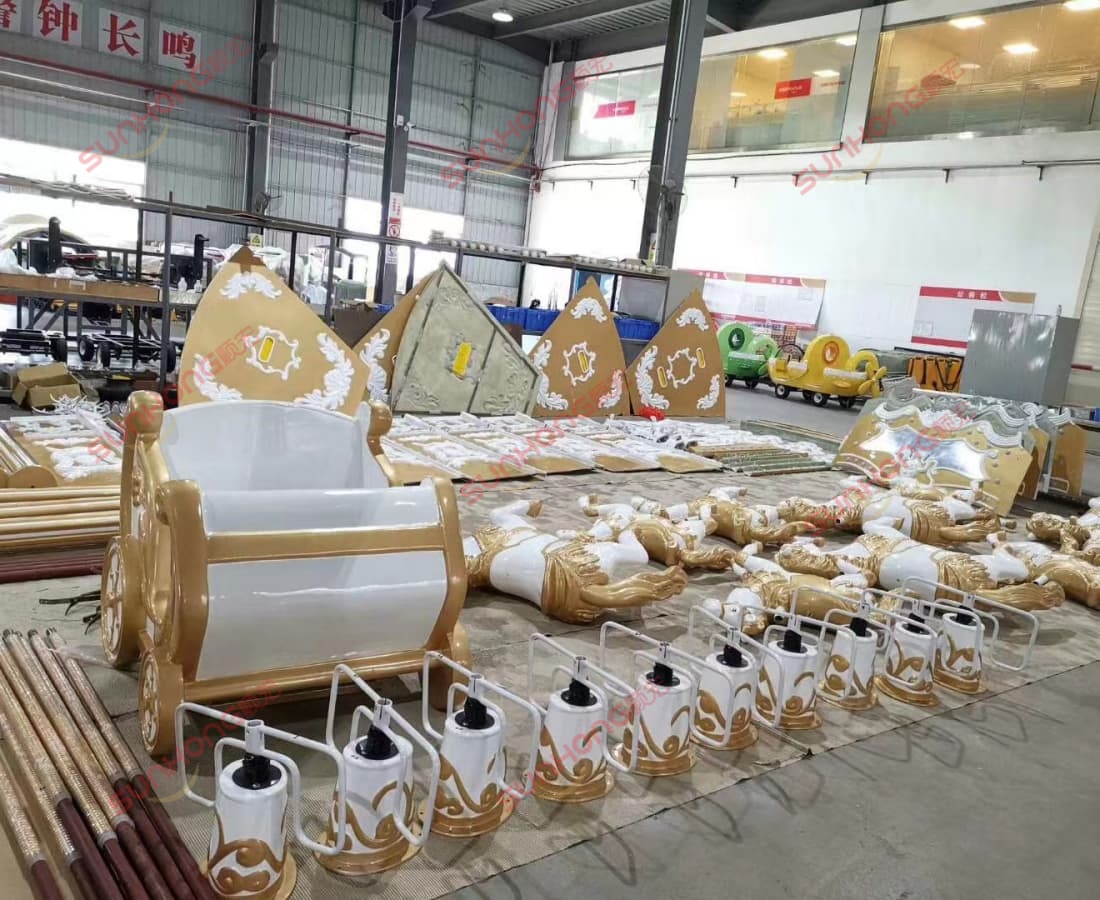

Step 7: Install Fiberglass Decorations and Seats

Install:

• Decorative panels
• Roof components
• Light channels
• Horses
• Chariots
• Side decorations
• Safety barriers

Step 8: Electrical Connection

Before operation:

• Connect power cables correctly.
• Check electrical connections.
• Confirm emergency stop function.
• Test lighting and control systems.

This is a detailed video of carousel installation:

Explore SUNHONG Carousels for Sale

4. Carousel Operation Instructions

Before operation:

✔ Check equipment condition
✔ Confirm passengers are seated correctly
✔ Ensure no obstacles exist around the ride
✔ Activate the warning bell before starting

During operation:

1. Stay at the control position.
2. Monitor passenger behavior.
3. Stop the ride immediately if abnormal conditions occur.

Emergency:

Press the emergency stop button to disconnect power immediately.

5. Carousel Safety Requirements

Passenger Safety Rules

Passengers should not ride if they:

• Have heart disease
• Have serious hypertension
• Are intoxicated
• Have conditions unsuitable for amusement rides

Passengers must:

• Remain seated during the operation.
• Hold safety handles.
• Avoid standing or moving during operation.

Children should ride under adult supervision according to local safety regulations.

6. Carousel Maintenance Guide

Regular maintenance ensures:

• Longer equipment lifespan
• Safer operation
• Lower repair costs
• Better passenger experience

Daily Maintenance

Check:

1. Loose bolts
2. Abnormal sounds
3. Electrical conditions
4. Safety devices
5. Lubrication status

Weekly Maintenance

Check:

1. Transmission shafts
2. Couplings
3. Gear systems
4. Reducer condition
5. Electrical components

Monthly Maintenance

Check:

1. Structural components
2. Bearings
3. Gear lubrication
4. Motor reducer oil
5. Welding conditions

Annual Inspection

Professional inspection should include:

1. Steel structure inspection
2. Welding inspection
3. Critical component inspection
4. Safety certification inspection

Explore SUNHONG Carousels for Sale

7. Carousel Lubrication Schedule

8. Common Carousel Troubleshooting

Carousel Does Not Start

Possible reasons:

• Power failure
• Fuse damage
• Emergency stop activated
• Electrical component failure

Solutions:

• Check the power supply
• Replace the damaged fuse
• Reset the emergency button
• Inspect control components

Explore SUNHONG Carousels for Sale

Lighting Does Not Work

Possible reasons:

• Lighting fuse failure
• Control board problem

Solution:

• Replace damaged components.

Abnormal Noise During Operation

Possible reasons:

• Insufficient lubrication
• Gear misalignment
• Loose components

Solution:

• Stop operation.
• Inspect and repair before restarting.

9. Carousel Safety Operation Management

For amusement park operators:

Operators should:

• Receive professional training.
• Understand equipment operation procedures.
• Complete daily inspection records.
• Monitor passengers continuously.
• Perform regular maintenance.

A complete operating system should include:

• Passenger instructions
• Operator procedures
• Daily inspection records
• Maintenance records
• Emergency response procedures
